Miniature Capacitance Level Switch
Temperature / Sensors with M12 Connectors / LSC52

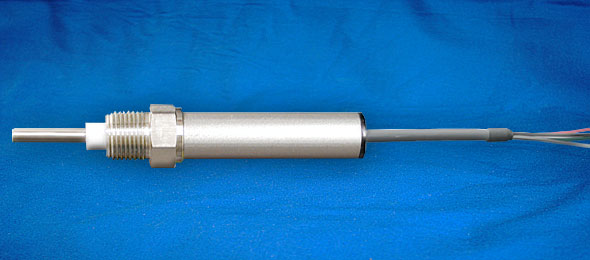

Miniature Capacitance Level Switch Picture
  • All stainless steel 316 construction, Teflon® isolator
  • Probe bare stainless steel or PFA Teflon clad
  • Integral electronic switching, relay output
  • Set-point calibration via one wire
  • Built-in slosh dampening
  • Hermetically sealed, vibration resistant construction
  • Operates on RF capacitance principle
  • For conductive and non-conductive liquids
  • Minimum or maximum limit detection

The LSC52 is truly a high quality sensor, which can be used in harsh environments, for liquid level limit detection in metallic and non-metallic tanks containing electrically conductive or non-conductive liquids. The probe, fitting and housing are constructed of stainless 316, the isolator is Teflon. The LSC52 sensors feature built-in protection against reverse polarity, overvoltage and electrical shielding to deliver long-term reliability. The output is relay SPDT which can be configured as either NO or NC or both NO and NC.

  • Limit detection for all type of liquids
  • Use Teflon® clad probe for conductive liquids
  • Use bare SS probe for clean non-cloging oils and fuels
  • For side mount and bottom mount tank applications
  • Leak detection
  • Coolant level monitoring

Looking to place an order? Kindly send us your order details or SKUs to sales@intempco.com. Please note that orders are processed via email. By choosing to buy our stock items, your order will be processed faster and at a lower price.

Miniature Capacitance Level Switch

  • LSC52, switch with 1 inch long probe, 1/4 inch NPT fitting and 6 feet of PVC cable
  • Relay output SPDT, can be used NO or NC
Item Details Stock List Price
SKU: LSC52-001
Part Number: LSC52-RL-PV-072-F14S-S-010-N

Bare stainless steel probe

In Stock N/A
SKU: LSC52-002
Part Number: LSC52-RL-PV-072-F14S-T-010-N

PFA Teflon clad probe

In Stock N/A

For pricing, please login now

Miniature Capacitance Level Switch

  • LSC52 switch with 1 inch long probe, 1/4 inch NPT fitting and M12 Micro-Connector, 8-pin.
  • Relay output SPDT, can be used NO or NC
Item Details Stock List Price
SKU: LSC52-010
Part Number: LSC52-RL-M8-N-F14S-S-010-N

Bare stainless steel probe

In Stock N/A
SKU: LSC52-011
Part Number: LSC52-RL-M8-N-F14S-T-010-N

PFA Teflon clad probe

In Stock N/A

For pricing, please login now

Miniature Capacitance Level Switch Details

  • Model Number

  • 1
    Output

  • 2
    Extension Type

  • 3
    Extension Cable 'E'
    : Please select an extension
  • 3
    Extension Cable 'E'

  • 3
    Extension Cable 'E'
      From 6 to 999 feet
  • 4
    Fitting Type

  • 5
    Probe Material

  • 6
    Probe Length 'L'
      From 1 to 36 inches
  • 7
    Options
