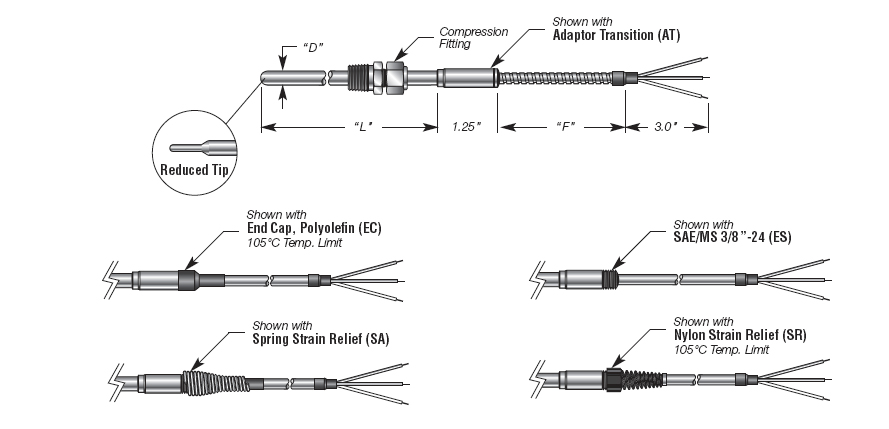

Capsule RTD with Transition w/ Extension Cable and Adjustable Compression Fitting
Temperature / R06

• General purpose RTD probe with PVC or Teflon lead wires
• Transition adaptor between leads and sheath
• Adjustable fitting available
• OEM designs and pricing available

This general purpose RTD probe is compact, low cost and ideal for OEM applications. Lead wires transition the sheath with the use of metal transition adaptor and are at that point more durable than the model R03 probe. PVC or Teflon jacketed lead wires are available.

• Teflon insulated leads, stranded 22 AWG silver plated copper, terminating in stripped ends, 3 feet long
• 3-wire configuration, Code S3
• Element Pt100 Ohm @ 0 ºC, alpha = 0.00385, Class A
• Temperature range of –50/ 200 Deg. C
• 1/8”, 3/16” and 1/4” diameter SS316 sheath w/end cap
• Probe lengths available are 4”, 6”, 9”, 12”, 18”, and 24”
