- Low cost solution when minimum downtime of the process is essential
- The RTD sensor is supplied with 316/316L stainless steel sheath material
- Sensor diameters are available in 0.188 and 0.250 inch also 4 and 6 mm
- Temperature range of the sensor is -50 to +250 °C for PTFE insulated lead wire and -50 to +450 °C for fibre glass lead wire

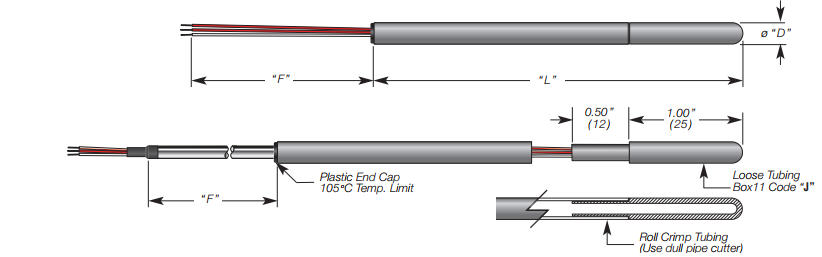

- The stainless steel tubing extension can be attached to the sensor using a roll-crimp or supplied separately
- Thin film element provides tip sensitivity and fast response
R04 series RTD sensors are designed to be used as a fast, temporary replacement for an existing failed RTD sensor for applications where down-time must be kept to a minimum. These sensors have a low-cost advantage as they can be supplied in predetermined lengths and then cut to suit the application as required. This reduces the necessity for stocking multiple lengths of RTDs.
R04 is primarily designed as a temporary replacement for a failed sensor installed within a thermowell assembly. It is recommended that this style of RTD be used as a temporary fix until a permanent replacement is supplied.
- Heating, ventilation, air-conditioning
- Water and wastewater treatment
- Chemical and petrochemical industries
- Power and utilities
- Energy and power plant technology
- Food and beverage industries
- Electronics and semiconductor industries
- Plastics and rubber industries
- Machinery, equipment and tank measurement
