LCD Digital Temperature Indicator, Battery , RTD Remote Sensor Probe, Sanitary Fitting
Temperature / Digital Temperature Gauges - DTG / DTG92

LCD Digital Temperature Indicator, Battery ,  RTD Remote Sensor Probe, Sanitary Fitting Picture
  • Sanitary 3-A qualified
  • Large LCD display
  • Security temper protection for re-programming
  • Utilizes self-calibration feature for accurate and stable performance
  • Utilizes Pt-1000 Ohm RTD Class A element for temperature sensing
  • IP 65/NEMA 4 rated environmental protection
  • All stainless steel 316 construction
  • Easy installation with various mounting configurations

The Model DTG92, Digital Temperature Gauge, is a complete solution for most industrial temperature monitoring and temperature indicating applications. This gauge features a large 4-digit LCD display. The DTG is designed as a direct replacement for bi-metal, liquid bulb and glass thermometers. Digital Display indicator can be flange ,bezel, or bracket mount.

DTG can be factory calibrated to customer specified temperature range, in units of Celsius or Fahrenheit. DTG is much more accurate than an RTD and a separate indicator.

The DTG wetted parts, as well as the housing, are fabricated from 316 stainless construction. The probe is either of 1/4 ” or 3/8 ” diameter as standard. As an option, other diameters and materials are available. The sensing element used is Pt-1000 Ohm RTD accuracy to DIN EN 60751 Class A.

If you require an accurate, stable and dependable digital thermometer, look no further. Model DTG92 is your solution.

  • Replacement for Bi-Metal, Liquid Buld and Glass Thermometers
  • Pharmaceutical
  • Food preparation
  • Utilities and Municipal
  • Refineries
  • Chemical and Petrochemical Plants
  • Paper Mills
  • Hydraulics
LCD Digital Temperature Indicator, Battery ,  RTD Remote Sensor Probe, Sanitary Fitting Details

  • Model Number

  • 1
    Model Range

  • 2
    Output

  • 3
    Probe Diameter 'D'

  • 4
    Probe Material
    S : Stainless steel 316/316L
  • 5
    Immersion Length 'U'
      From 1 to 99 inches
  • 6
    Remote Probe Cable Type

  • 7
    Remote Probe Cable Length 'E'
      From 6 to 999 inches
  • 8

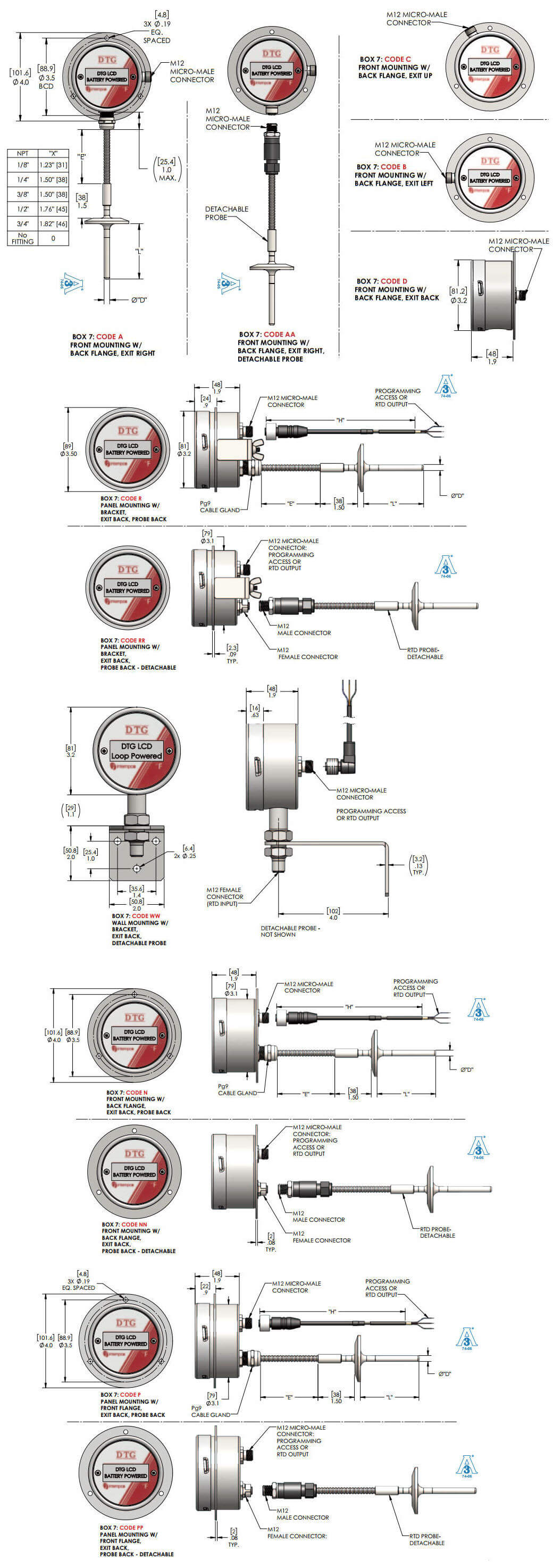

    Mounting Options

  • 9
    Process Fitting Type / Size

  • 10
    Extension - Connector / Cable Type

  • 11
    Extension Cable 'F' or 'H'
    N : No Cable
  • 11
    Extension Cable 'F' or 'H'

  • 11
    Extension Cable 'F' or 'H'
      From 6 to 999 inches
  • 12
    Surface Finish

  • 13
    Option - Calibration


  • Comments / Specifications
