R330 - Transformer Oil RTD
Temperature / Probe Type RTD's / R330

R330 - Transformer Oil RTD Picture
  • Transformer Oil RTD Probe consisting of Ø6 mm SS Sheath, Copper Tip and Teflon insulated Cable
  • Several Options Available for Stainless Steel Swivel Fitting
  • Improved Thermal Response as the Element is installed inside the Copper Tip.
  • 2, 3 or 4 wire Class A RTD Circuit options
  • Operating Sensor Temperature ranges from -50 to 200° C

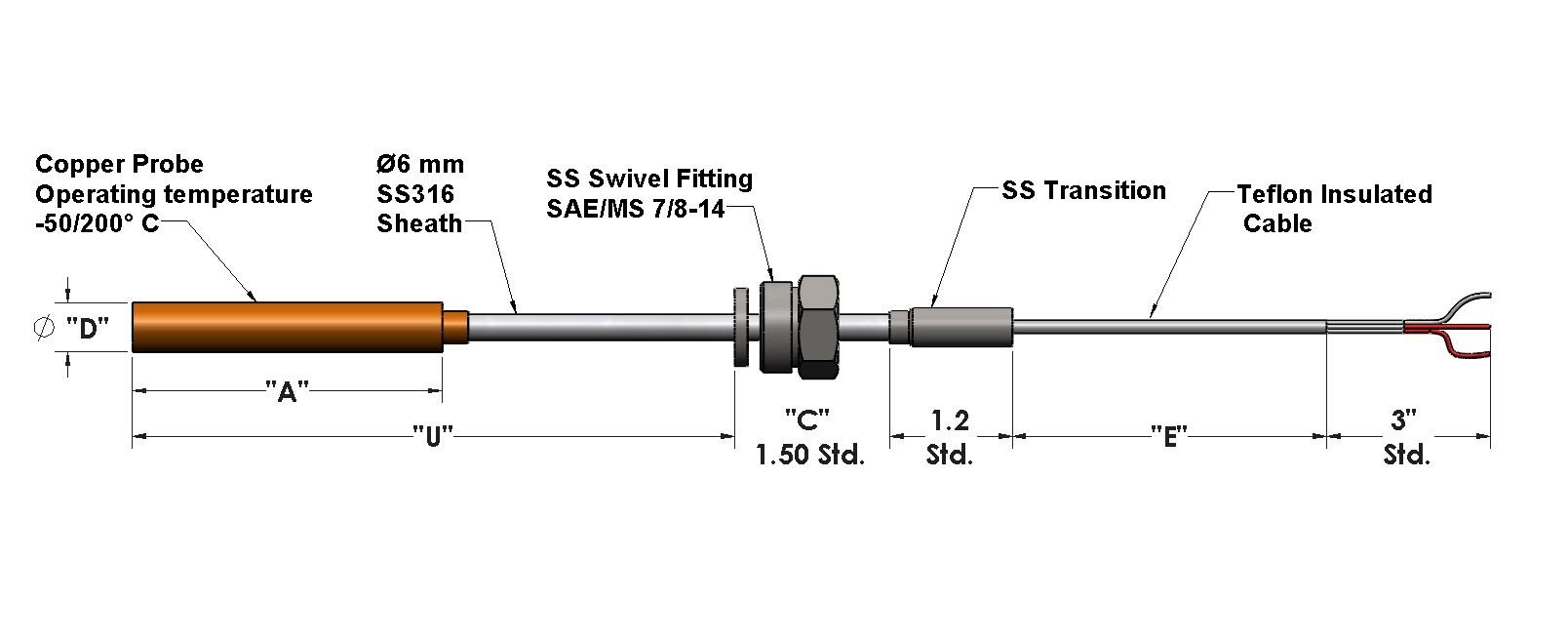

R330 - Transformer Oil RTD Details

  • Model Number

  • 1
    Temperature Range

  • 2
    Output Type

  • 3
    Probe Diameter 'D'
      From 0 to 2 inches
  • 4
    Copper Probe Length 'A'
      From 1 to 6 inches
  • 5
    Immersion Length 'U'
      From 4 to 99 inches
  • 6
    Fitting Type

  • 7
    Cable Length 'E'
      From 6 to 999 inches
  • 8
    Extension 'C'
      From 1 to 9 inches

  • Comments / Specifications

Please do not hesitate to call us 1-888-468-3672
